Bucket Emptier

Also see Bucket Filler.

Note that since this uses a МЭ поставщик шаблонов, it is meant to integrate into your autocrafting setup.

Sometimes, life is inconvenient and you need the fluid itself but you can only make the fluid in a bucket. Sometimes a machine might do this for you (like the Fluid Transposer from Thermal Expansion), but you might not always have a mod that does it conveniently for you. Luckily vanilla Minecraft has a slightly-less-convenient way, the Раздатчик.

Configurations

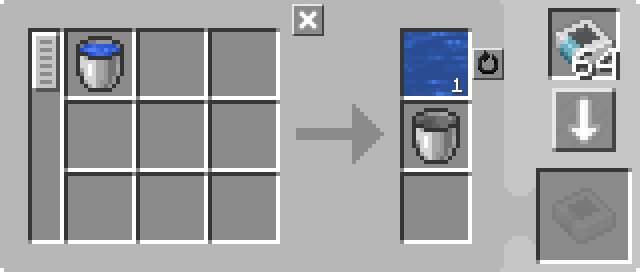

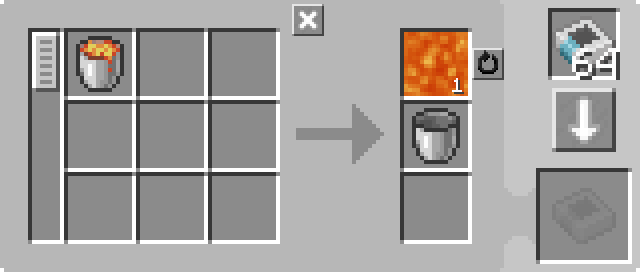

• The МЭ поставщик шаблонов (1) is Set to lock crafting "With redstone signal" and blocking mode turned on, with the relevant Шаблон обработкиs.



• The МЭ-интерфейс (2) is in its default configuration.

• The first МЭ шина хранения (3) is in its default configuration.

• The МЭ плоскость уничтожения (4) has no GUI and cannot be configured.

• The Мэ шина импорта (5) is filtered to buckets.

• The second МЭ шина хранения (6) is in its default configuration.

How It Works

1. The МЭ поставщик шаблонов pushes the ingredients into the МЭ-интерфейс. (Actually, as an optimization, it pushes directly through the storage bus as if it were an extension of the provider's faces. The items never actually enter the interface.)
2. Through mechanisms described in pipe subnets, the bucket ends up in the Раздатчик.
3. The Редстоуновый компаратор detects the bucket in the dispenser and thus simultaneously powers the dispenser and locks the МЭ поставщик шаблонов.
4. The dispenser dumps out the fluid from the bucket, it now has an empty bucket in itself.
5. The Мэ шина импорта pulls the empty bucket out of the dispenser and stores it through the МЭ шина хранения into the pattern provider, returning it to the main network.
6. The comparator sees the dispenser is empty, unlocking the provider.
